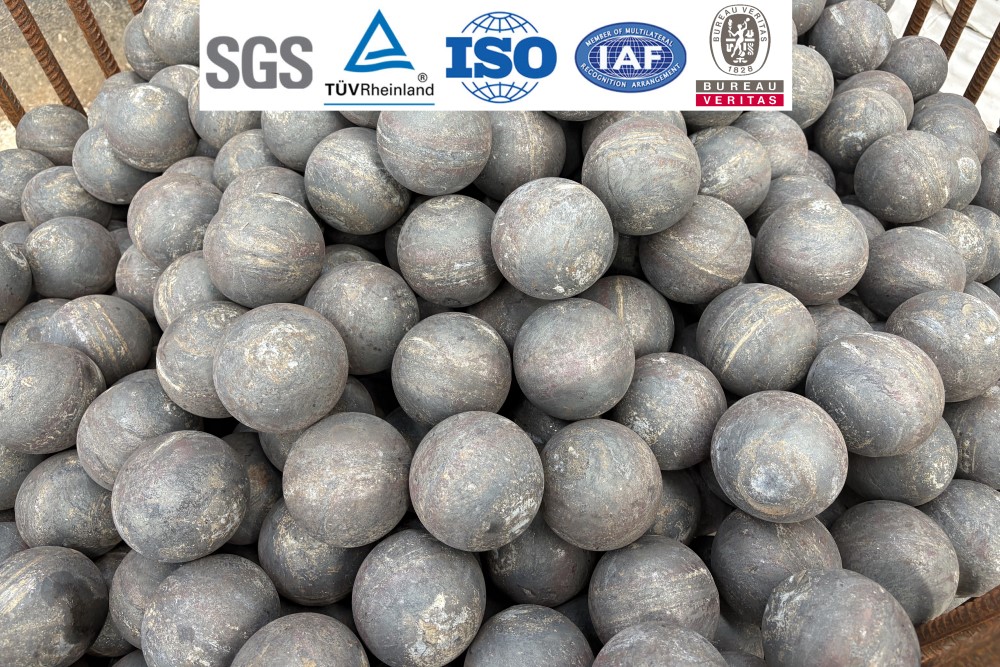

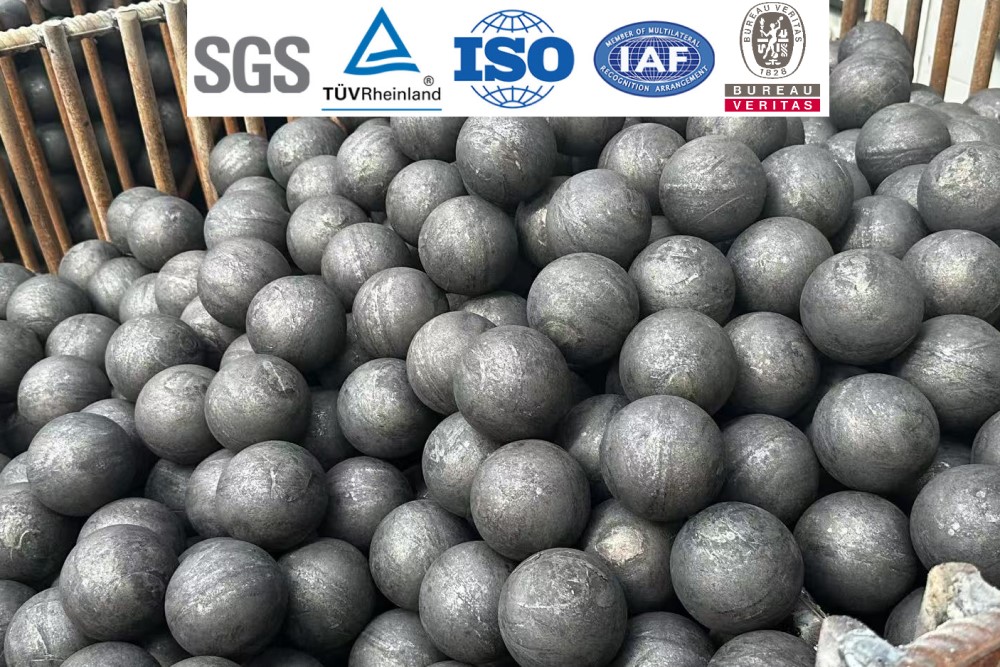

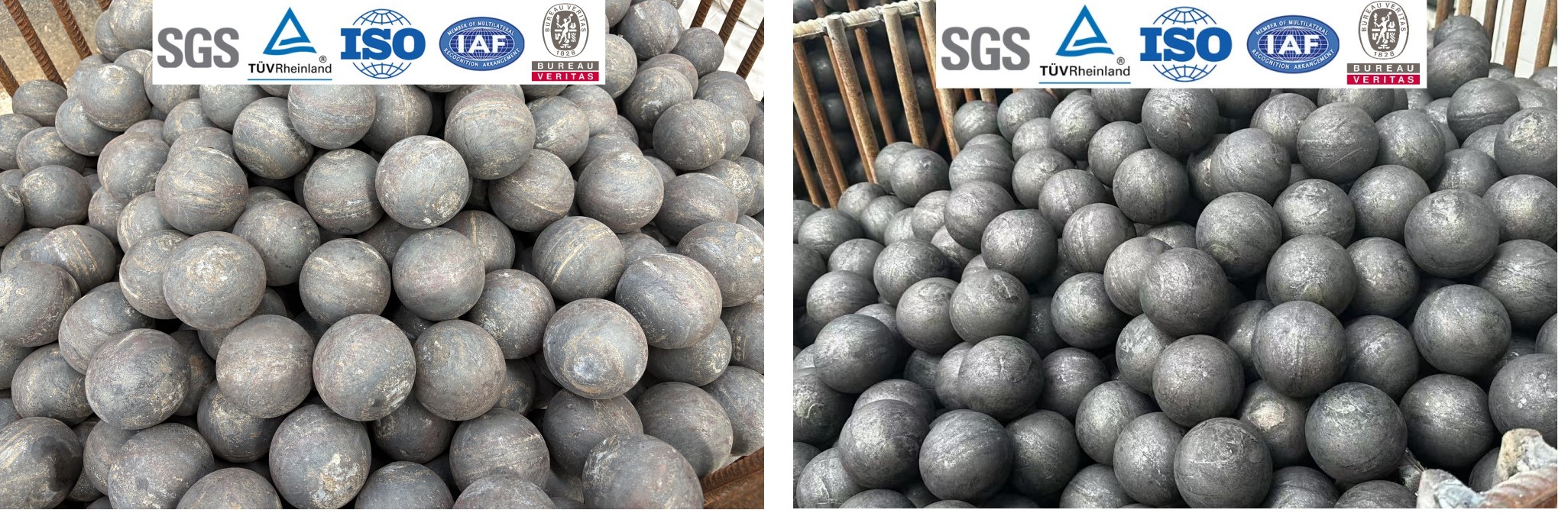

4 inch grinding balls

Each batch of 4 Inch Grinding Balls undergoes rigorous quality checks for diameter precision, roundness, and surface integrity. The accurate 100mm size and smooth finish improve mill efficiency, reduce energy loss, and help the 4 Inch Grinding Balls contribute to higher ore processing productivity.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Center

The 4 Inch Grinding Balls are produced using high-carbon alloy steel and advanced forging or rolling techniques, ensuring a dense structure and excellent toughness. This allows the 4 Inch Grinding Balls to handle continuous impact and abrasion in large ball mills, reducing the risk of surface cracks or deformation.

4 inch grinding balls

Application Solutions

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

TTechnical Documentation

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
ZT-4	0.44-0.72	0.50-0.90	0.17-0.37	≤0.50	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control System Overview

Production Base

Plants and Production Equipment

Exhibition Activities & Events

Exhibitions

Join Hands With Us

With strict control of heat treatment processes, the 4 Inch Grinding Balls achieve uniform hardness from surface to core. This balanced hardness ensures superior wear resistance and minimizes ball consumption, helping the 4 Inch Grinding Balls deliver consistent performance over extended grinding cycles.
