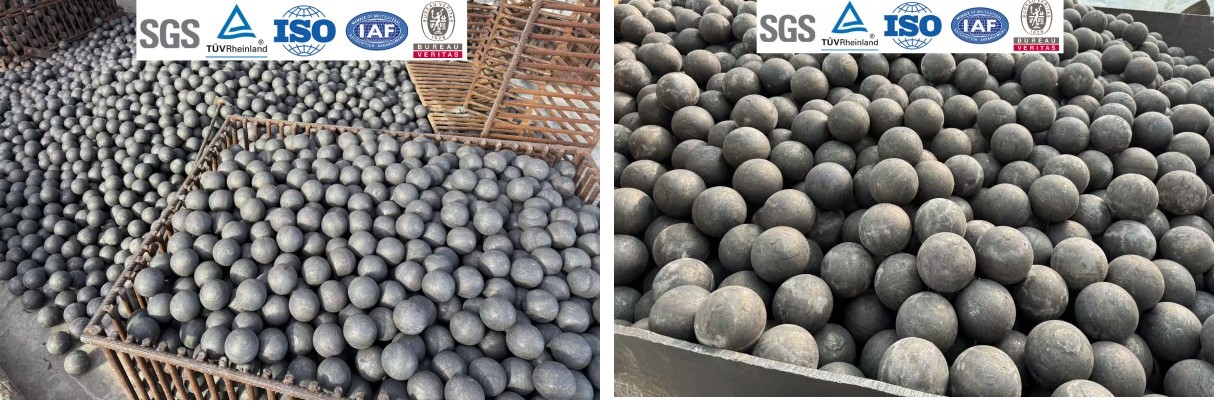

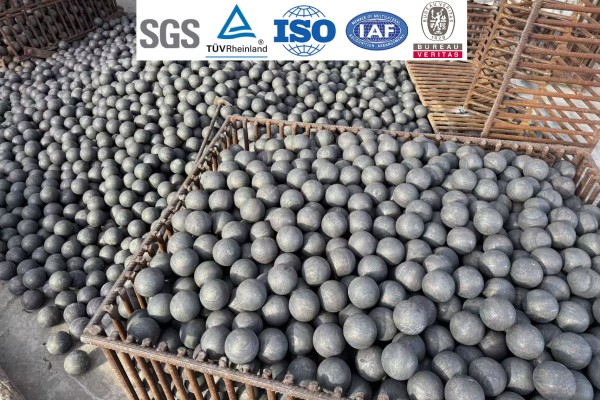

Forged Carbon Steel Ball
Forged Carbon Steel Ball is valued for its solid structure and stable performance formed through forging processes. The forging method improves overall strength and impact resistance, allowing the Forged Carbon Steel Ball to maintain consistent grinding behavior under continuous working conditions.
Product Introduction
Our Forged Carbon Steel Ball is manufactured using selected carbon steel materials and controlled production processes. Multiple sizes are available to match different mill machines and operating conditions, providing flexible choices for various grinding applications.
Wide Application
Machines | Industries |
·Ball mills | ·Mining industry |
·SAG mills | ·Power stations |
·Tower mills | ·Cement industry |
·Coal grinding machine | ·Steel Industry |
·Bearing | ·Chemical Industry |
·Metallurgical industry |
Forged Carbon Steel Ball is widely applied in mining, cement, and mineral processing industries. It performs reliably in both coarse and fine grinding stages, adapting well to different materials and supporting efficient size reduction in industrial milling systems.
Technical Performance
Chemical Composition (%) | ||||||
Steel Specification | C | Mn | Si | Cr | S | P |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.80-1.15 | ≤0.035 | ≤0.035 |
42CrMo | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | 0.90-1.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.00 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.72 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
ZT-4 | 0.44-0.72 | 0.50-0.90 | 0.17-0.37 | ≤0.50 | ≤0.035 | ≤0.035 |
ZT-10 | 0.60-0.78 | 0.65-1.33 | 0.25-0.65 | ≤0.45 | ≤0.035 | ≤0.035 |
B2 | 0.70-0.92 | 0.70-1.00 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 |
B3 | 0.52-0.65 | 0.66-1.00 | 1.30-1.90 | 0.74-1.20 | ≤0.030 | ≤0.030 |
B4 | 0.65-0.75 | 0.50-0.70 | 1.20-1.40 | 0.85-1.00 | ≤0.025 | ≤0.025 |
B6 | 0.75-0.90 | 0.80-1.02 | 0.17-0.37 | 0.88-0.98 | ≤0.035 | ≤0.035 |
BU | 0.95-1.05 | 0.95-1.05 | 0.15-0.35 | 0.45-0.55 | ≤0.035 | ≤0.035 |
BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.70-1.20 | ≤0.035 | ≤0.035 |
BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 1.00-1.70 | ≤0.035 | ≤0.035 |
Physical Features | |||||
Diameter (mm) (inches) | Surface Hardness (HRC) | Diameter Tolerance (mm) | Impact Value (J/cm²) | Breakage Rate (%) | Drop Test (times) |
20 (0.79) | >60 | +2.0 -1.0 | ≥12 | ≤1 | >15000 |
25 (0.98) | |||||
30 (1.18) | |||||
40 (1.57) | |||||
50 (1.97) | |||||
60 (2.36) | +3.0 -1.5 | ||||
65(5.56) | |||||
70 (2.76) | |||||
75 (3.00) | |||||
80 (3.15) | |||||
90 (3.54) | |||||
100 (3.94) | +4.0 -2.0 | ||||
120 (4.72) | >58 | ||||
125 (4.92) | |||||
140 (5.51) | >55 | +5.0 -3.0 | |||
150 (5.91) | |||||
Strict Quality Inspection
Each batch of Forged Carbon Steel Ball undergoes routine inspections, including dimensional checks, surface evaluation, and basic performance testing. These quality control steps help ensure consistent quality and reliable performance during long-term use.
Manufacturing Process
Exhibition Presence
We actively present Forged Carbon Steel Ball at international mining and industrial exhibitions. Through exhibitions, customers gain a clearer understanding of product applications and manufacturing capabilities, strengthening communication and cooperation opportunities.
Why Choose Us
Choosing Forged Carbon Steel Ball from us means selecting products supported by stable quality, reliable supply, and practical service. With experience serving customers in different regions, we provide consistent grinding solutions for long-term industrial use.
