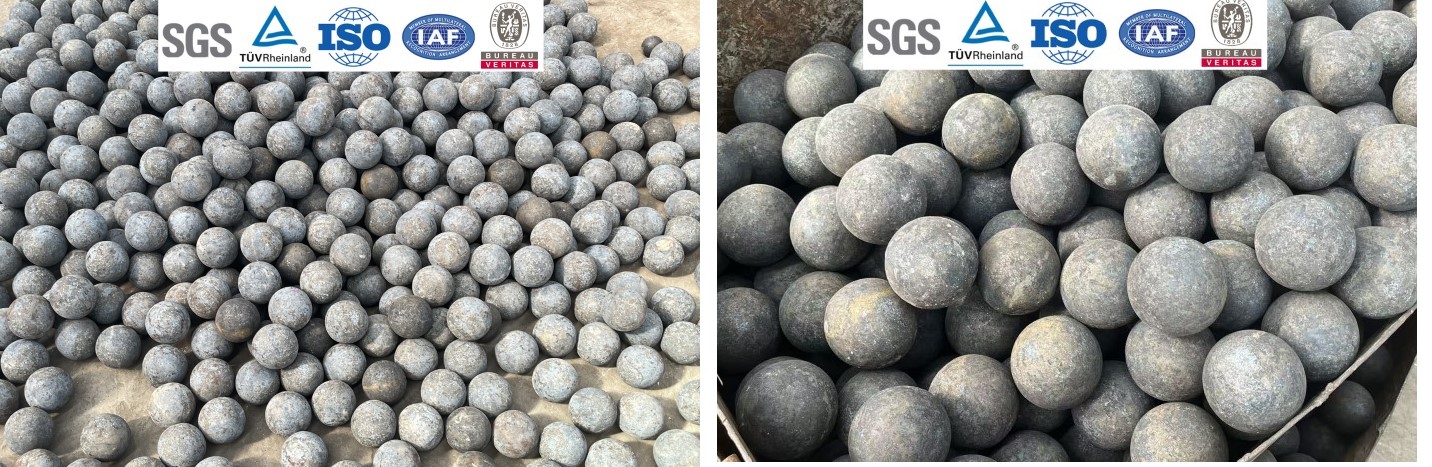

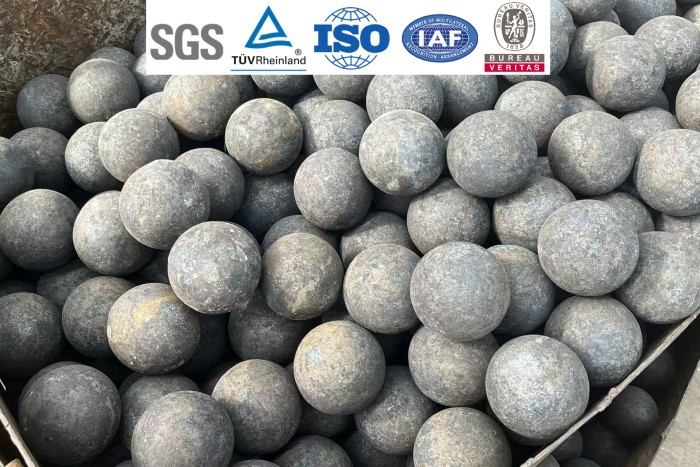

Forged Steel Grinding Media Balls
Forged Steel Grinding Media Balls are recognized for their dense structure and reliable performance created through the forging process. The forging method enhances impact resistance and overall strength, allowing the balls to maintain stable grinding efficiency during continuous milling operations.
Product Introduction
Our Forged Steel Grinding Media Balls are manufactured from selected steel materials under controlled production conditions. A wide range of diameters is available to suit different mill types and operating environments, offering flexible grinding solutions for various industrial needs.
Wide Application
Machines | Industries |
·Ball mills | ·Mining industry |
·Power stations | |
·Tower mills | ·Cement industry |
·Coal grinding machine | ·Steel Industry |
·Bearing | ·Chemical Industry |
·Metallurgical industry |
Forged Carbon Steel Ball is widely applied in mining, cement, and mineral processing industries. It performs reliably in both coarse and fine grinding stages, adapting well to different materials and supporting efficient size reduction in industrial milling systems.
Technical Performance
Chemical Composition (%) | ||||||
Steel Specification | C | Mn | Si | Cr | S | P |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.80-1.15 | ≤0.035 | ≤0.035 |
42CrMo | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | 0.90-1.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.00 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.72 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
ZT-4 | 0.44-0.72 | 0.50-0.90 | 0.17-0.37 | ≤0.50 | ≤0.035 | ≤0.035 |
ZT-10 | 0.60-0.78 | 0.65-1.33 | 0.25-0.65 | ≤0.45 | ≤0.035 | ≤0.035 |
B2 | 0.70-0.92 | 0.70-1.00 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 |
B3 | 0.52-0.65 | 0.66-1.00 | 1.30-1.90 | 0.74-1.20 | ≤0.030 | ≤0.030 |
B4 | 0.65-0.75 | 0.50-0.70 | 1.20-1.40 | 0.85-1.00 | ≤0.025 | ≤0.025 |
B6 | 0.75-0.90 | 0.80-1.02 | 0.17-0.37 | 0.88-0.98 | ≤0.035 | ≤0.035 |
BU | 0.95-1.05 | 0.95-1.05 | 0.15-0.35 | 0.45-0.55 | ≤0.035 | ≤0.035 |
BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.70-1.20 | ≤0.035 | ≤0.035 |
BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 1.00-1.70 | ≤0.035 | ≤0.035 |
Physical Features | |||||
Diameter (mm) (inches) | Surface Hardness (HRC) | Diameter Tolerance (mm) | Impact Value (J/cm²) | Breakage Rate (%) | Drop Test (times) |
20 (0.79) | >60 | +2.0 -1.0 | ≥12 | ≤1 | >15000 |
25 (0.98) | |||||
30 (1.18) | |||||
40 (1.57) | |||||
50 (1.97) | |||||
60 (2.36) | +3.0 -1.5 | ||||
65(5.56) | |||||
70 (2.76) | |||||
75 (3.00) | |||||
80 (3.15) | |||||
90 (3.54) | |||||
100 (3.94) | +4.0 -2.0 | ||||
120 (4.72) | >58 | ||||
125 (4.92) | |||||
140 (5.51) | >55 | +5.0 -3.0 | |||
150 (5.91) | |||||
Strict Quality Inspection
Forged Steel Grinding Media Balls are widely used in mining, cement production, and mineral processing industries. They perform effectively in both coarse and fine grinding stages, adapting to different materials and helping achieve controlled particle size reduction.
Manufacturing Process
Exhibition Presence
We actively showcase Forged Steel Grinding Media Balls at international mining and industrial exhibitions. These exhibitions provide opportunities to present product applications, exchange technical insights, and strengthen cooperation with global partners.
Why Choose Us
Choosing Forged Steel Grinding Media Balls from us means selecting products backed by stable quality, reliable supply capacity, and practical service support. With experience serving clients in different regions, we provide dependable grinding media solutions for long-term industrial operations.
