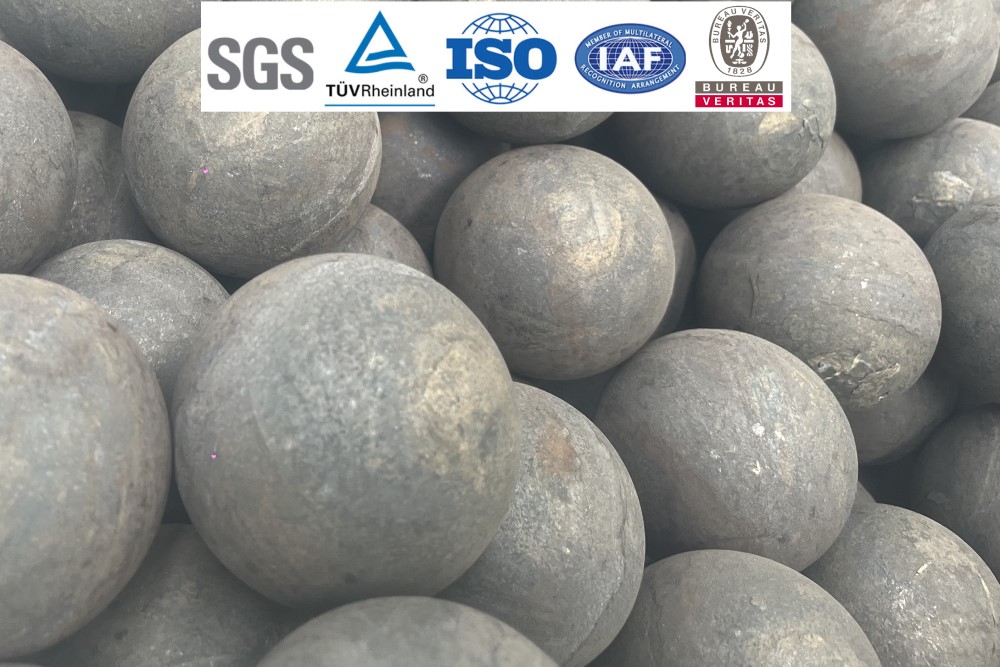

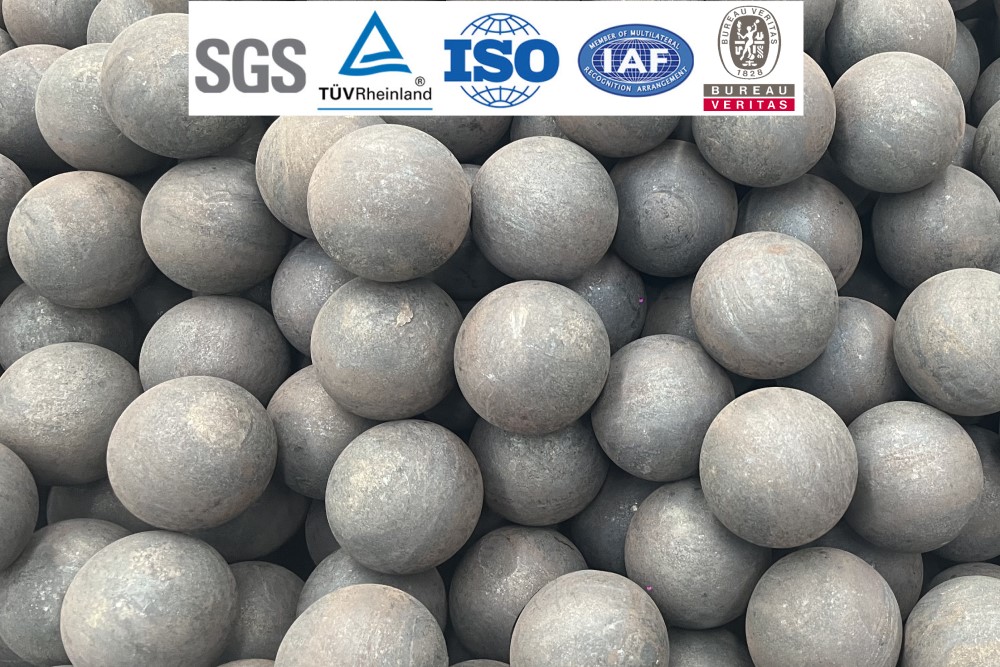

3.5 Inch grinding ball

The 3.5 Inch Grinding Ball is produced using advanced forging or hot rolling technology, resulting in a dense structure and excellent toughness. This ensures that the 3.5 Inch Grinding Ball performs reliably in high-impact grinding environments, reducing the risk of cracking and improving overall mill efficiency.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Highlights

Through carefully controlled quenching and tempering processes, the 3.5 Inch Grinding Ball achieves uniform hardness throughout its cross-section. This balanced hardness provides both wear resistance and impact strength, allowing the 3.5 Inch Grinding Ball to maintain consistent performance over extended service periods.

3.5 Inch grinding ball

Application Areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical Insights

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
ZT-4	0.44-0.72	0.50-0.90	0.17-0.37	≤0.50	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Measures

Production Resources

Plants and Production Equipment

Global Exhibition Presence

Exhibitions

Why Work With Us

With a precise diameter of 90mm and excellent roundness, the 3.5 Inch Grinding Ball offers stable motion inside the mill, enhancing energy transfer and ore breakdown. Its smooth surface minimizes friction and energy loss, making the 3.5 Inch Grinding Ball a cost-effective choice for large-scale grinding operations.
