2 Inch Grinding Balls

The 2 inch grinding balls offer a perfect balance between impact force and abrasion resistance, making them suitable for both rough grinding and finish grinding stages. Their high surface hardness combined with a tough core ensures longer service life and less ball consumption. With lower wear rates, you can expect reduced mill downtime and improved grinding efficiency, ultimately lowering overall production costs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Overview

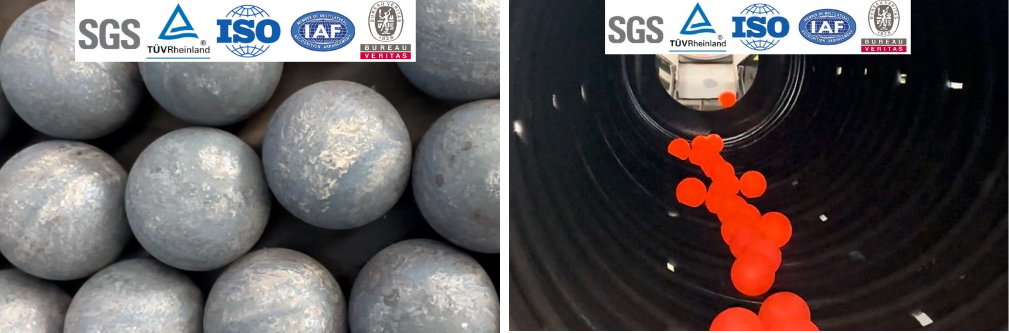

2-inch grinding balls are specially manufactured for mid-to-fine grinding operations, widely used in mining plants, cement factories, and thermal power stations. We use premium alloy steel to forge these balls and apply a carefully controlled heat treatment process to ensure a hardness of HRC>60. This gives the balls excellent strength, wear resistance, and consistency during demanding milling tasks.

2 Inch Grinding Balls

Applications in Grinding Machinery and Industries

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical Specifications

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
ZT-4	0.44-0.72	0.50-0.90	0.17-0.37	≤0.50	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Advanced Quality Control and Inspection Systems

Facilities and Production Machinery

Plants and Production Equipment

Exhibitions

Exhibitions

Why Choose Us

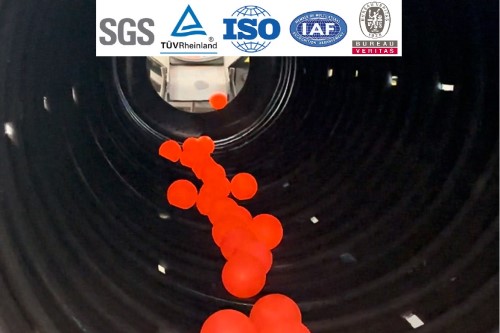

We stand out by using a fully automatic production line that combines precision forging, immediate quenching, and a low-temperature tempering process. This guarantees excellent internal structure without soft spots or cracks. Compared to many traditional producers, we offer tighter hardness control and better roundness, ensuring more stable performance inside your mill. In addition, our fast production cycle and strong quality management system help you keep your operations running smoothly without unexpected delays.
