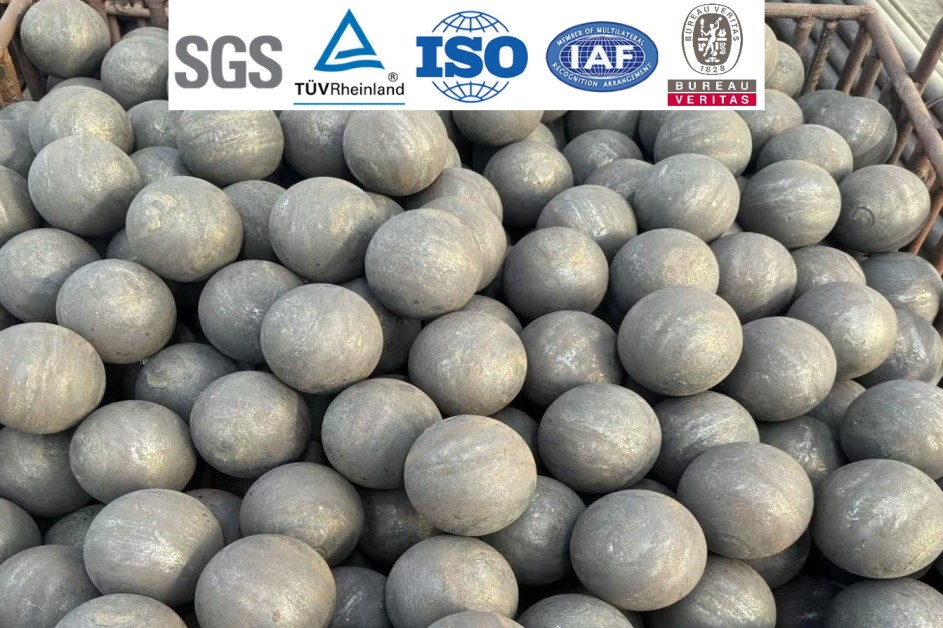

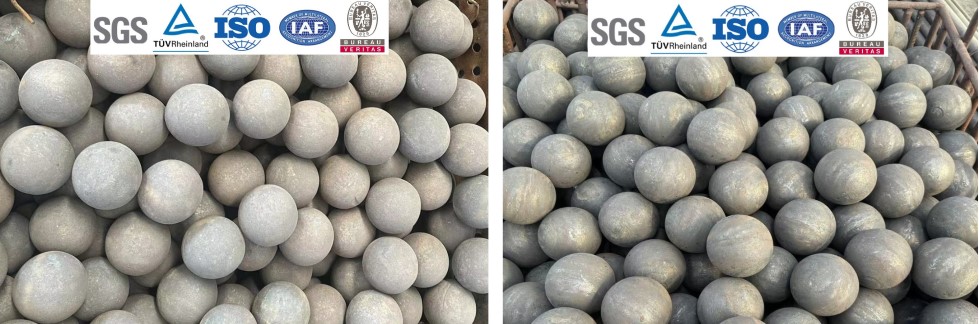

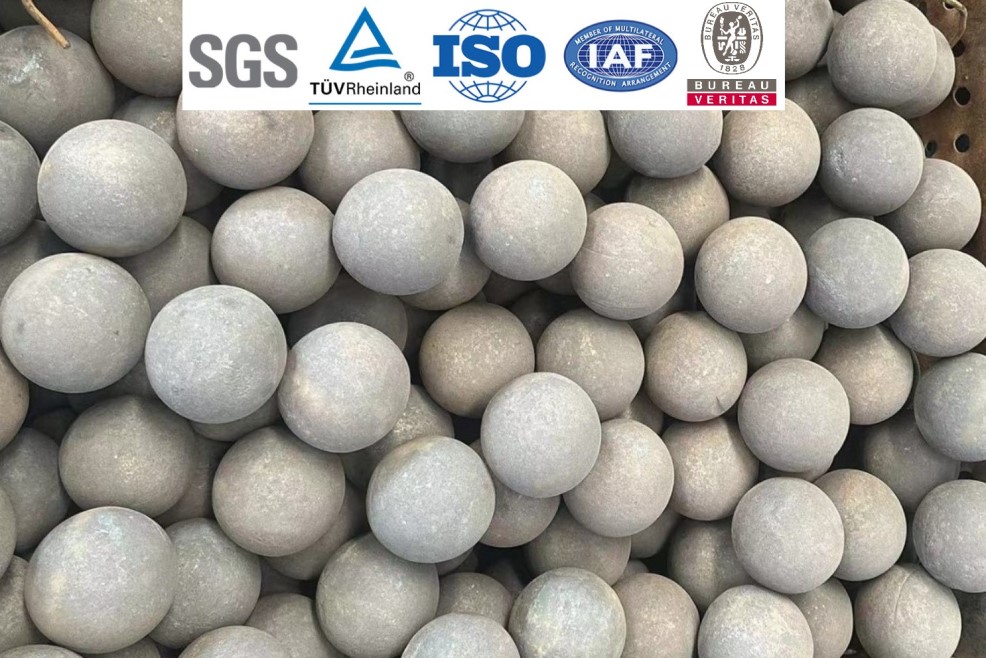

1/2/3/4/5 Inch Forged Steel Grinding Balls
Our 1/2/3/4/5 inch forged steel grinding balls are manufactured using high-quality alloy steel, ensuring outstanding hardness and wear resistance. The forging process enhances the internal structure, providing uniform density and high impact toughness. These grinding balls are designed to withstand extreme working conditions, delivering consistent performance and a longer service life.
Introduction of the product
Each grinding ball undergoes a strict production process, including controlled heating, precision forging, and rigorous quality inspections. This ensures uniform size, roundness, and hardness, minimizing deviations in diameter and weight. With these high-precision specifications, our forged steel grinding balls contribute to efficient and stable grinding operations, reducing power consumption and improving mill performance.
Application in grinding machines and areas
Machines | Industries |
·Ball mills | ·Mining industry |
·Power stations | |
·Tower mills | ·Cement industry |
·Coal grinding machine | ·Steel Industry |
·Bearing | ·Chemical Industry |
·Metallurgical industry |
Technical data
Chemical Composition (%) | ||||||
Steel Specification | C | Mn | Si | Cr | S | P |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.80-1.15 | ≤0.035 | ≤0.035 |
42CrMo | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | 0.90-1.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.00 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.72 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
#45/C45 | 0.42-0.54 | 0.50-0.80 | 0.17-0.37 | ≤0.15 | ≤0.035 | ≤0.035 |
ZT-10 | 0.60-0.78 | 0.65-1.33 | 0.25-0.65 | ≤0.45 | ≤0.035 | ≤0.035 |
B2 | 0.70-0.92 | 0.70-1.00 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 |
B3 | 0.52-0.65 | 0.66-1.00 | 1.30-1.90 | 0.74-1.20 | ≤0.030 | ≤0.030 |
B4 | 0.65-0.75 | 0.50-0.70 | 1.20-1.40 | 0.85-1.00 | ≤0.025 | ≤0.025 |
B6 | 0.75-0.90 | 0.80-1.02 | 0.17-0.37 | 0.88-0.98 | ≤0.035 | ≤0.035 |
BU | 0.95-1.05 | 0.95-1.05 | 0.15-0.35 | 0.45-0.55 | ≤0.035 | ≤0.035 |
BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.70-1.20 | ≤0.035 | ≤0.035 |
BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 1.00-1.70 | ≤0.035 | ≤0.035 |
Physical Features | |||||
Diameter (mm) (inches) | Surface Hardness (HRC) | Diameter Tolerance (mm) | Impact Value (J/cm²) | Breakage Rate (%) | Drop Test (times) |
20 (0.79) | >60 | +2.0 -1.0 | ≥12 | ≤1 | >15000 |
25 (0.98) | |||||
30 (1.18) | |||||
40 (1.57) | |||||
50 (1.97) | |||||
60 (2.36) | +3.0 -1.5 | ||||
65(5.56) | |||||
70 (2.76) | |||||
75 (3.00) | |||||
80 (3.15) | |||||
90 (3.54) | |||||
100 (3.94) | +4.0 -2.0 | ||||
120 (4.72) | >58 | ||||
125 (4.92) | |||||
140 (5.51) | >55 | +5.0 -3.0 | |||
150 (5.91) | |||||
Quality Control Technology and Equipment
Plants and Production Equipment
Exhibitions
Why choose us
Our forged steel grinding balls are suitable for a wide range of applications, including mining, cement plants, power stations, and chemical industries. They can be used in both wet and dry grinding processes, optimizing grinding efficiency across different environments. Additionally, we offer customizable options for size, material composition, and hardness to meet specific customer requirements.
