20mm-150mm Grinding Ball

20mm-150mm Grinding Ball are manufactured using premium steel materials, ensuring excellent hardness and superior wear resistance. This high hardness level reduces deformation and wear, extending the lifespan of the balls while maintaining consistent grinding efficiency. They are ideal for heavy-duty applications in mining, cement plants, and power stations.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

Each 20mm-150mm Grinding Ball is produced with strict dimensional accuracy, ensuring a consistent shape and size. This precision minimizes energy consumption and enhances the overall grinding process, providing stable performance in ball mills. The uniform roundness contributes to efficient grinding, reducing material waste and improving productivity.

20mm-150mm Grinding Ball

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

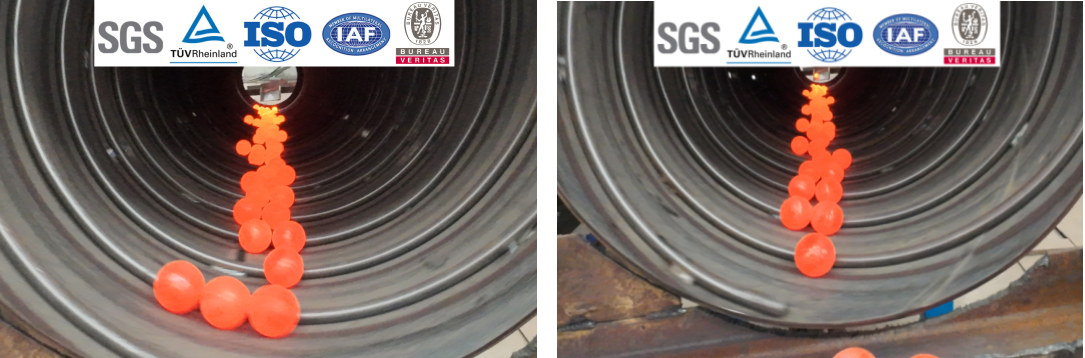

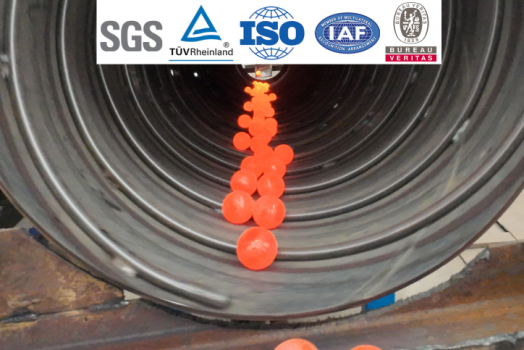

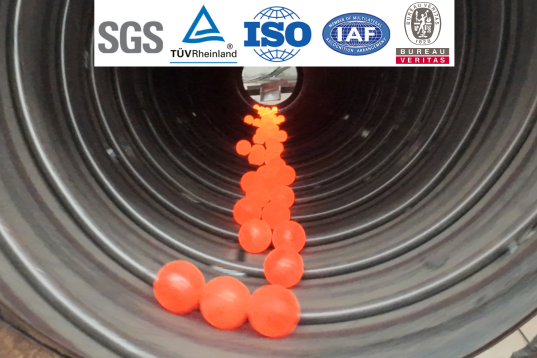

Quality Control Technology and Equipment

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

Designed for both wet and dry grinding, 20mm-150mm Grinding Ball deliver exceptional results across different grinding environments. Their high impact toughness prevents breakage, ensuring reliable performance in harsh grinding conditions. Whether used for ore processing, cement production, or industrial mineral grinding, they provide durable and efficient operation.
