SAG Mill Grinding Media

SAG Mill Grinding Media is specifically developed to withstand the extreme impact and abrasive conditions inside semi-autogenous grinding mills. Featuring high toughness, excellent wear resistance, and consistent hardness, the grinding media helps maximize milling efficiency while minimizing breakage and operational downtime.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

SAG Mill Grinding Media is manufactured from premium alloy or carbon steel using advanced forging technology and precisely controlled heat treatment. The optimized production process creates a dense internal structure and balanced mechanical properties, ensuring reliable performance throughout demanding grinding operations.

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

SAG Mill Grinding Media is widely used in gold, copper, iron ore, and polymetallic mining operations. It is designed for semi-autogenous grinding mills and can also be applied in large ball mills where high-impact grinding media are required for efficient ore size reduction.

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

Each batch of SAG Mill Grinding Media undergoes comprehensive quality inspections, including chemical composition analysis, hardness testing, impact resistance evaluation, drop testing, and dimensional verification. Every production stage is strictly controlled to ensure consistent quality and dependable field performance.

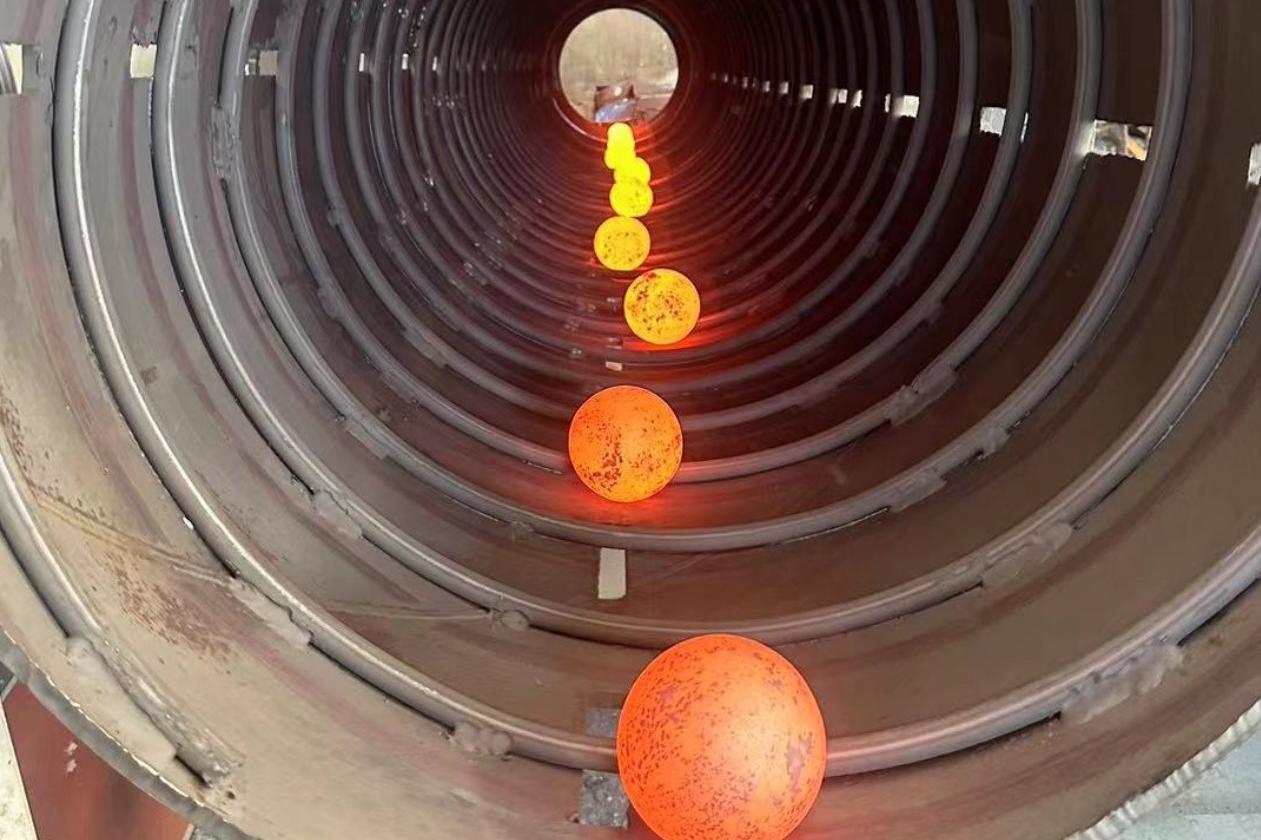

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

SAG Mill Grinding Media is regularly showcased at international mining exhibitions and mineral processing conferences. These events provide opportunities to present our latest grinding solutions, exchange technical knowledge, and strengthen long-term partnerships with mining companies worldwide.

Why choose us

Choosing SAG Mill Grinding Media from ZenTi means partnering with an experienced manufacturer committed to product quality, advanced production technology, and dependable global supply. With over 150,000 tons of annual production capacity, strict quality management, and responsive customer service, we provide reliable grinding media solutions that support efficient mining operations worldwide.
